K- Box
Accurate analog, digital and temperature sensor measurement data for CAN applications.
Accurate analog, digital and temperature sensor measurement data for CAN applications.

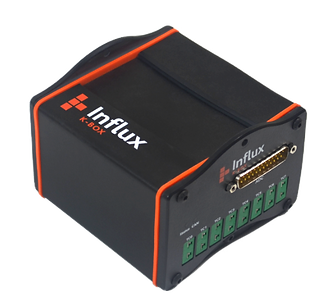

Designed for accurate sensor measurement, with captured data being transmitted on the CAN Bus. The Multi-Daq K-Box is ideal for applications that require a quick set-up and collection of thermocouples, analog, digital and PWM inputs.
Stackable with all of our K-series instrumentation modules, the K-Box includes our unique power down and WakeOnCAN feature, enabling quick installation on long term unattended fleet test vehicles.
Accurate sensor measurement data is transmitted periodically on the CAN Bus enabling multiple K-Series modules to be connected together and data recorded via our CAN data loggers.
The K-Box CAN Bus settings, calibration and sampling rates are all easily configurable and stored even when not powered.
CAN Output
Voltage
Digital/Analog
Temperature
Frequency/PWM
Key Features:
■ Up to 8 K-type connections at up to 20 Hz sampling rate
■ 8 Analog inputs with variable input sampling rates (8 channels at 1k Hz, 4 channels at 5k Hz)
■ PWM: 3 inputs frequency measurements, counters or pulse measurements
■ Outputs: 4 Relay outputs (Optional)
■ Regulated +5V and +24V output power supply for external sensors
■ Supplied with configuration software, Influx K-Cal for Windows® and configurable via a DBC file
■ Instrumentation data time synchronised with recorded vehicle network data via CAN
■ Galvanic isolation between modules (enclosure, power, CAN BUS, analog input module and thermocouple input module)
■ Measurement accuracy: +/- 1 degree C, Measurement resolution: 0.1 degree C
■ Analog channel over-voltage protection +/- 150 Volt
■ Stackable ABS enclosure
The essential start-up kit for new K-Box users.
This kit is ideal for applications that will measure temperatures, pressures, voltages, currents, PWM, RPM, digital counters or IEPE sensors, with everything needed to set-up and test from the workbench.
Our versatile multi-DAQ K-BOX Kit is a cost-effective solution to measure multiple sensor types within one module.
Handling IEPE and PT100/1000 Addons
■ Enables easy connection of IEPE sensors to voltage input measurement devices
■ K-PT modules allow connection and accurate measurement of PT100 and PT1000 sensors
K-PT 100/1000
Click here to add your own content, or connect to data from your collections.
K-IEPE
Click here to add your own content, or connect to data from your collections.
Interested? Get in touch!
+44 (0) 1525 842504
For more information, or to find your nearest team:
K-Cal, the all in one K-Series instrumentation tool.
K-Cal is freely distributable and supports all K-series modules.
■ Calibrate sensor channels and output calibration reports
■ Set CAN Bus baud rate and message identifiers
■ Set individual signal channel configuration and scaling, using formulas and tables
■ Set signal sampling rates
■ Construct, Edit and Export DBC files for CAN bus data
■ Monitor signals live with a graphical window
